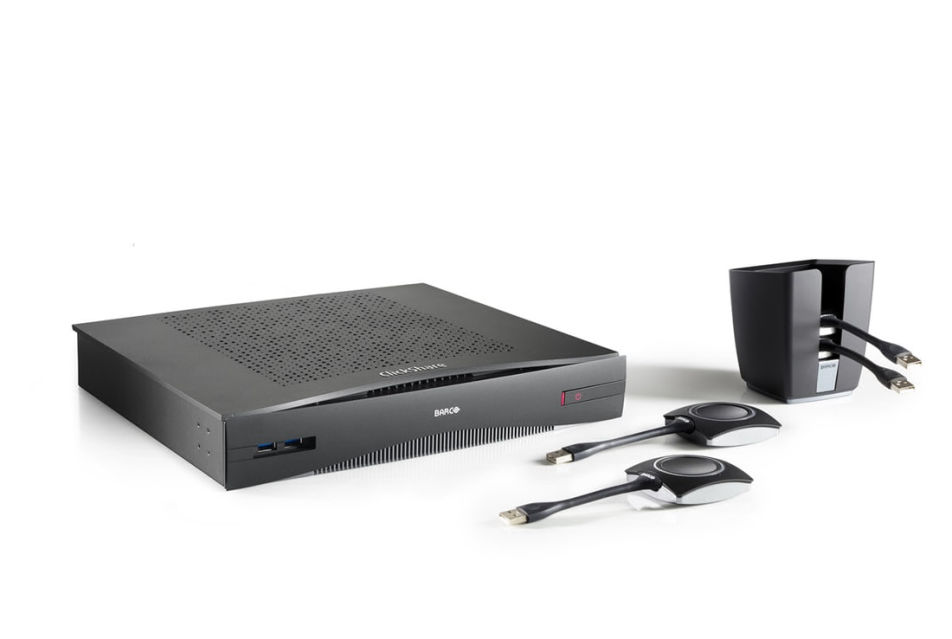

ClickShare CSE-800

Wireless presentation and collaboration system for boardrooms and conference rooms

CSE-800

- Wireless connection to central screen
- Enhanced security features
- Up to 8 users on-screen simultaneously
- Share from laptop, tablet or smartphone
- Moderation, blackboarding and annotation
- Easily connects with existing AV & IT equipment
- 4K DCI

Download spec sheet

General specifications
Operating systemWindows 7/8/8.1/10 32 & 64 bit
macOS 10.12/10.13/10.14 (Mojave)
Android v7 & v8 & 8.1 (ClickShare app)
iOS 10, 11& 12 (ClickShare app)
Video outputs2x HDMI
Video inputs2x HDMI
Output resolution4K DCI (4096x2160) @ 60Hz
AirPlay SupportiOS mirroring (AirPlay) from iOS 9.0 up to iOS 12 / Mac OS 10.14
Google Cast SupportAndroid 8.1 Oreo
Input resolutions4K DCI (4096x2160) @ 60Hz
Frame rateUsing inputs:
Up to 60fps with one input @ 4K
Up to 30fps with two inputs @ 4K

Using the ClickShare Button or Apps:
Up to 30 fps
Noise LevelMax. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Number of sources simultaneous on screen8 (4 per screen)
Number of simultaneous connections64
iPad, iPhone and Android compatibilitySharing of documents, browser, camera for both Android and iOS devices via ClickShare app
Extended desktopAvailable (depending on your operating system). May require ClickShare Extension Pack.
Authentication protocolWPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocolIEEE 802.11 a/b/g/n and IEEE 802.15.1
ReachAdjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band2.4 GHZ and 5 GHz (DFS channels not supported)
Connections2x Ethernet LAN 1Gbit
2x USB 2.0; 2x USB 3.0 (back); 2x USB 3.0 (front)
Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
Temperature rangeOperating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
HumidityStorage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft systemKensington lock
CertificationsFCC/CE
Warranty3 years standard
Possible to extend to 5 years
Dimensions (HxWxD)46.2mm x 282.3mm x 206.5mm (excl. antennas) / 1.8" x 11.1" x 8.1"
146.4mm x 282.3mm x 206.5mm (incl. antennas) / 5.8"x 11.1" x 8.1"
Power supplyStandard 110/220 V AC plug
Power consumptionNormal operation:
90W under full usage
52W under normal usage (connect 2 HDMI outputs, connect 1 HDMI input, share with 4 people)
ECO mode: 30W
Networked standby mode: < 1W
Deep standby mode: < 0.5W
Weight2.2kg / 4.85lbs
