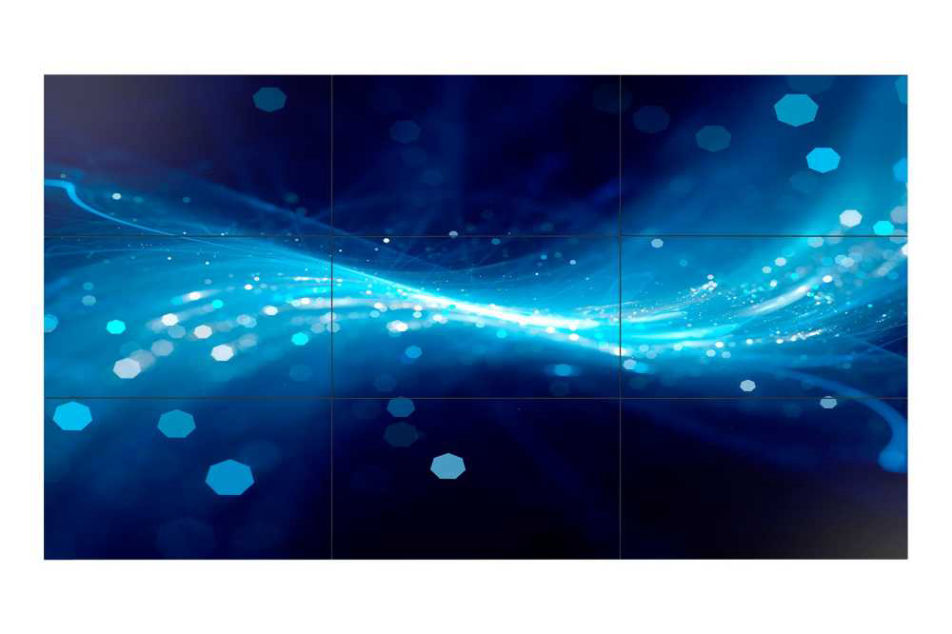

Premium video wall displays featuring deeper visual impact and thinner bezel width of 1.7mm


- Extremely narrow bezel (1.7mm) for a virtually seamless, life-like viewing experience
- Superb color accuracy and brightness uniformity thanks to precise calibration and panel technology
- Daisy Chain through use of DisplayPort (DP) 1.2 or HDMI port, eliminating the need for graphic cards
- Highly reliable displays designed for 24/7 operation, with simple, easy-to-use special wall mount

Download spec sheet

General specifications
Diagonal Size 55"
Resolution 1920*1080 (Full HD)
Pixel Pitch(mm)0.63mm(H) X 0.63mm(V)
Active Display Area(mm)1209.6 X 680.4mm
Brightness(Typ.)700 nit
Contrast Ratio4000:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)8ms
Display Colors8 bit - 16.7M
Color Gamut72%
Operation Hour24/7
Haze25% (Outer Haze 23%)
H-Scanning Frequency30kHz ~ 81kHz
V-Scanning Frequency48Hz ~ 75Hz
Maximum Pixel Frequency148.5MHz
Input RGB Analog D-SUB, DVI-D, Display Port 1.2
Video  HDMI 2.0 (2)
Audio Stereo mini Jack
USB Only F/W upgrade
Output RGB  DP1.2(Loop-out)
Audio Stereo mini Jack
External Control RS232C(in/out), RJ45
External SensorDetachable type(IR, Ambient)
Power ConsumptionMax[W/h] 297.0
Typical[W/h] 180.0
BTU(Max) 1013.0
Sleep mode less than 0.5W
Off mode less than 0.5W
Dimension (mm)Set 1211.6 X 682.4 X 96.3
Package  1355 x 809 x 320
Weight (kg)Set  21.0kg
Package 28.2kg
VESA Mount (mm)  600 X 400
Bezel Width (mm) 1.15mm(U/L), 0.55mm(R/B)
Operating Temperature 0.0 ℃ ~ 40.0 ℃
Humidity 10.0 % ~ 80.0 %

UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1
FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB9254-2008, GB17625.1-2012
Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries
