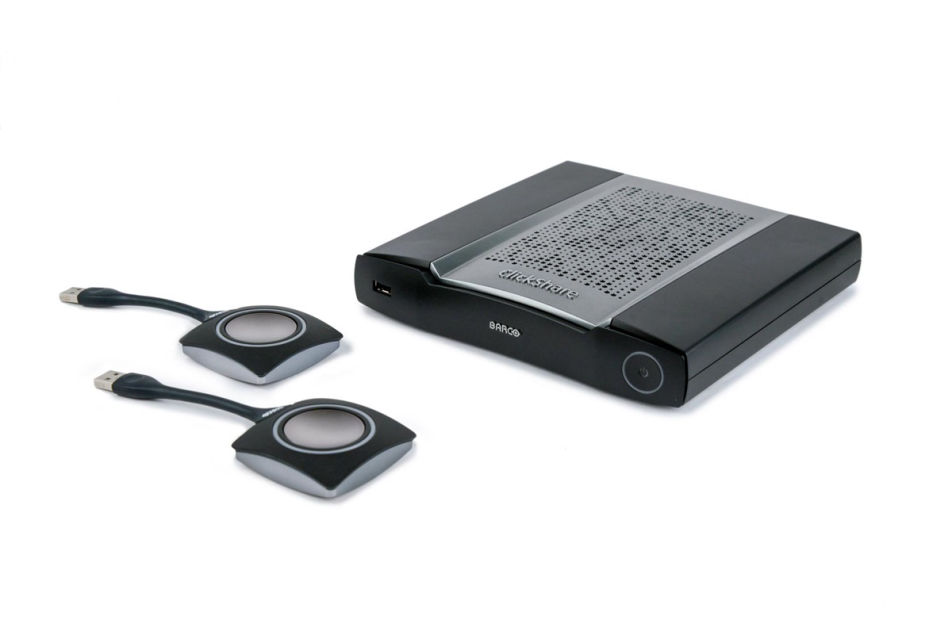

ClickShare CSE-200+

wireless collaboration solution for creative content-sharing fit for enterprise roll-outs

CSE-200+

- Up to 2 users on-screen
- Share from laptop, tablet or smartphone
- Smooth switching between wired and wireless sources
- Enhanced security features
- Annotation, blackboarding and touch back support on a 4K canvas
- Central management
- Delivered with 2 Buttons

Download spec sheet

General specifications
Operating systemWindows 7/8/8.1/10 32 & 64 bit
macOS 10.12/10.13/10.14 (Mojave)
Android v7 & v8 & 8.1 (ClickShare app)
iOS  11& 12 (ClickShare app)
Video outputs1x HDMI 1.4b
Video inputs1x HDMI 1.4b
Output resolution4K DCI (3840x2160) @ 30Hz
AirPlay SupportiOS mirroring (AirPlay) from iOS 9.0 up to iOS 12 / Mac OS 10.14 (Mojave)
Google Cast SupportAndroid 8
Miracast supportWindows 10 (coming soon)
Input resolutions1920x1080 @60Hz
Noise LevelMax. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Number of sources simultaneous on screen2
Number of simultaneous connections16
iPad, iPhone and Android compatibilitySharing of documents, browser, camera for both Android and iOS devices via ClickShare app
Extended desktopAvailable (depending on your operating system). May require ClickShare Extension Pack.
Authentication protocolWPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocolIEEE 802.11 a/b/g/n/ac and IEEE 802.15.1
ReachAdjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band2.4 GHZ and 5 GHz (DFS channels supported in select number of countries - coming soon)
Connections1x Ethernet LAN 1Gbit
1x USB Type-C 2.0 (back); 2x USB Type A 2.0 (back); 1x USB Type A 2.0 (front)
Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
Temperature rangeOperating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
HumidityStorage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft systemKensington lock
CertificationsFCC/CE
Warranty3 years standard
Dimensions (HxWxD)39mm x 200mm x 202mm
Power supplyStandard 110/220 V AC plug
Power consumptionOperational: 50W (max)
Standby: <8W (networked standby), < 0.5W (deep standby mode)
Weight 900 gr
